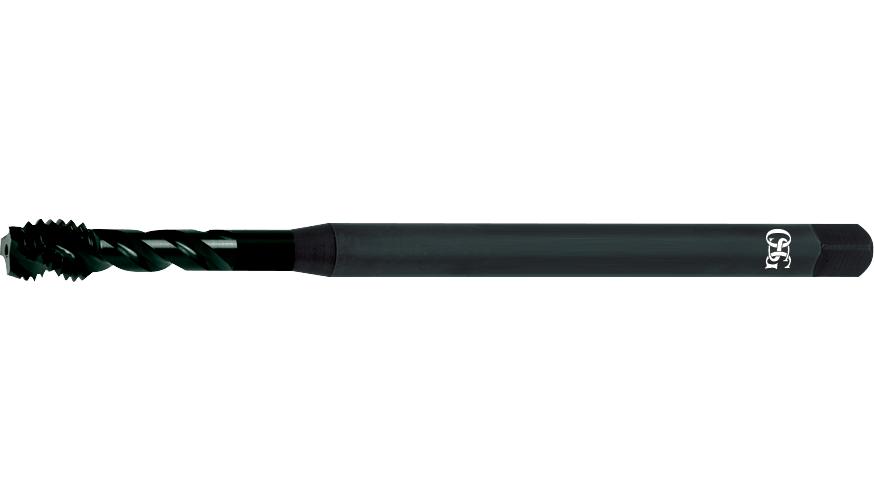

EXO® 1767901 398 High Performance Long Shank Spiral Flute Tap, Right Hand Cutting, 1/4-20 Thread, H3 Thread Limit, Semi-Bottoming Chamfer, Right Hand Flute Direction, 3 Flutes, Steam Oxide, HSS-E
tap flute spl rh 1/4-20 h3 semi-botmg rh
Stellar Part #OSGCO 1767901
MFG Part #1767901
MFG Name:OSG
Product Description:
EXO® Spiral Flute Tap, High Performance Long Shank, Series: 398, Measurement System: Imperial, UNC, 1/4-20, Semi-Bottoming Chamfer, 3 Flutes, HSS-E, Steam Oxide, Class of Fit: H3, Right Hand Cutting, 1-1/2 in Thread Length, 4 in Overall Length, 0.255 in Shank Dia, Right Hand Flute Direction
Login For Price
- Item Features
- Technical Specifications
- Increased wear resistance
- S/O increases mechanical lubricity
- Capable of reaching 50% deeper holes than ANSI standard taps
- Increased wear resistance
- S/O increases mechanical lubricity
- Capable of reaching 50% deeper holes than ANSI standard taps
- Chamfer Type:Semi-BottomingClass of Fit:H3Cutting Direction:Right HandFinish/Coating:Steam OxideFlute Direction:Right HandMaterial:HSS-EMaterial Application:Low Carbon Steels, 300 and 400 Stainless Steel, Medium to High Carbon SteelsMeasurement System:ImperialNumber of Flutes:3Overall Length:4 inSeries:398Shank Diameter:0.255 inThread Length:1-1/2 inThread Limit:H3Thread Size:1/4-20Thread Standard:UNCType:High Performance Long Shank
