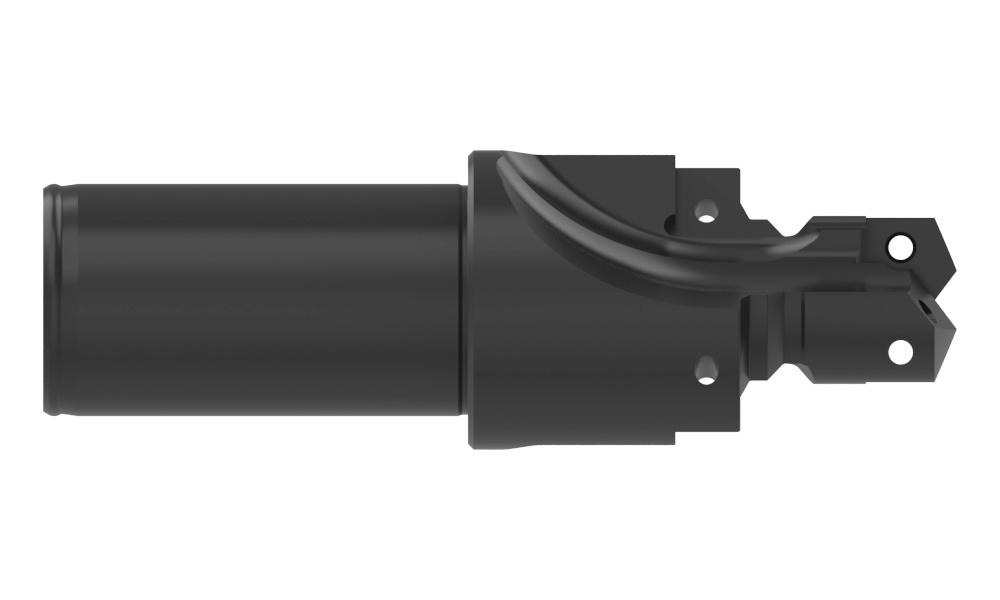

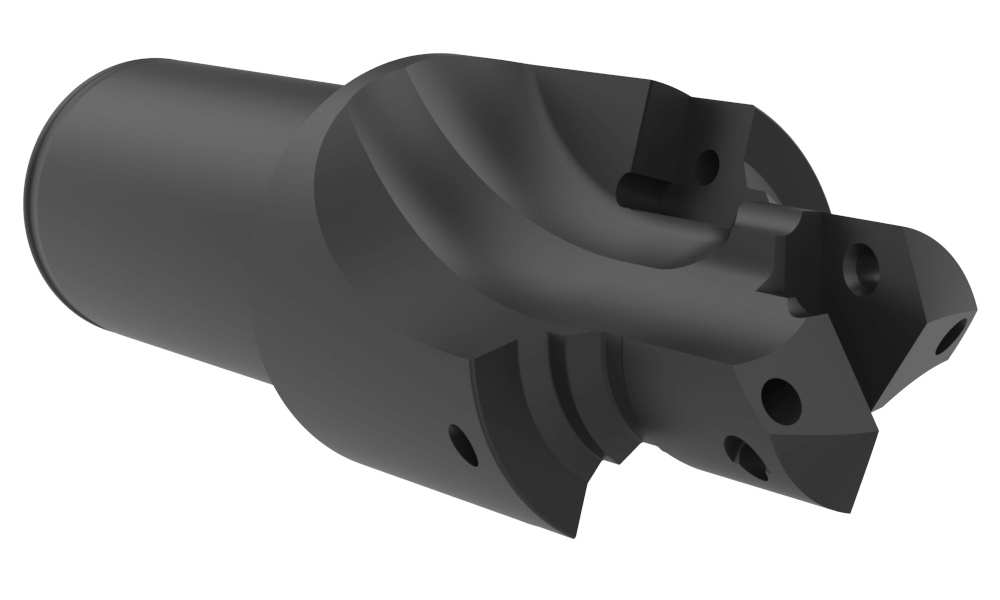

Allied Machine & Engineering AccuPort 432® AS5202-122-125F 2 Series Port Contour Cutter, SAE AS5202, 0.984 in Dia Pilot, AS5202-12-C5A Insert, 1-1/16-12 UNJ-3B Thread
cutter ctr port sae as5202 0.984in
Stellar Part #ALLIE AS5202-122-125F
MFG Part #AS5202-122-125F
MFG Name:Allied Machine & Engineering
Product Description:
Allied Machine & Engineering AccuPort 432® Port Contour Cutter, Series: 2 Series, Port Standard Designation: SAE AS5202, 1-1/16-12 UNJ-3B, AS5202-12-C5A Insert, 2 Inserts, Tube Dash Number: 12, 60 deg Porting Angle, 1.635 in Spot Face Dia, 0.984 in Pilot Dia, 1.069 in Pilot Length, 1-1/4 in Shank Dia, 2.281 in Shank Length, 5.05 in Overall Length, Hardened Tool Steel
Login For Price
- Item Features
- Technical Specifications
- For ports and stud ends with straight threads and o-ring sealing
- 1.494 in L spotface to shoulder
- 1/8 in L seal pilot
- 1.086 in Dia seal pilot
- Eliminates the need for pre-drilling
- Allows for efficient set-up and production time
- Saves on tool cost
- Replaceable insert design eliminates regrinding and resetting
- Cylindrical shank
- 1.237 in Dia seal
- -12 tube dash size
- 2.765 in L tool reference
- For ports and stud ends with straight threads and o-ring sealing
- 1.494 in L spotface to shoulder
- 1/8 in L seal pilot
- 1.086 in Dia seal pilot
- Eliminates the need for pre-drilling
- Allows for efficient set-up and production time
- Saves on tool cost
- Replaceable insert design eliminates regrinding and resetting
- Cylindrical shank
- 1.237 in Dia seal
- -12 tube dash size
- 2.765 in L tool reference
- Insert Style:AS5202-12-C5AMaterial:Hardened Tool SteelNumber of Inserts:2Overall Length:5.05 inPilot Diameter:0.984 inPilot Length:1.069 inPort Standard Designation:SAE AS5202Porting Angle:60 degSeries:2 SeriesShank Diameter:1-1/4 inShank Length:2.281 inSpot Face Diameter:1.635 inThread Size:1-1/16-12 UNJ-3BTube Dash Number:12
