Milwaukee

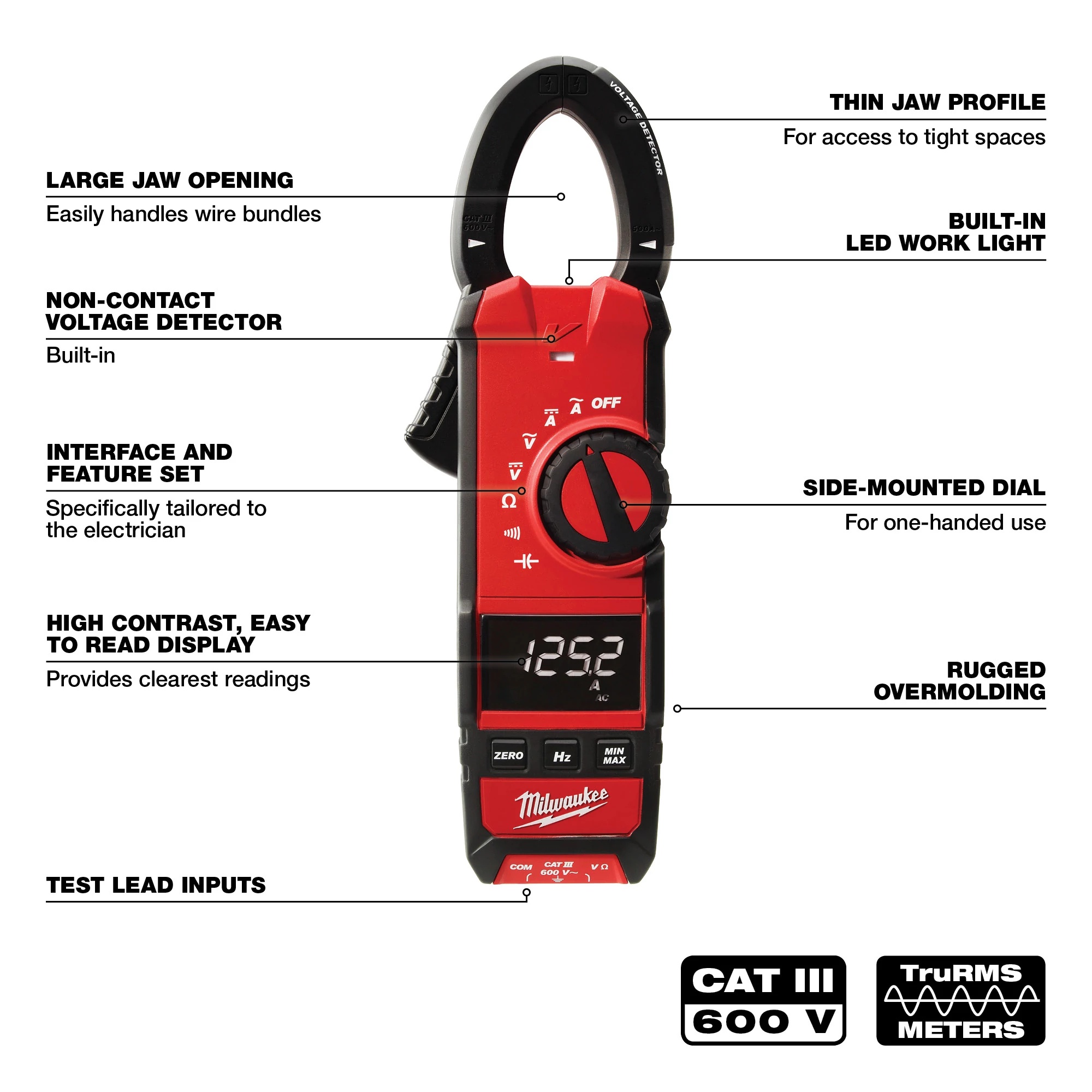

Milwaukee® 2237-20 Clamp Meter, 600 A, 600 VAC/VDC, 6 kOhm, 1 Hz to 10 kHz, 1.3 in Jaw, High Contrast White on Black LCD Display
meter clamp 600 a 600 vac/vdc 6kohm
Stellar Part #MILWA 2237-20
MFG Part #2237-20
MFG Name:Milwaukee Tool
Product Description:
Milwaukee® Clamp Meter, 600 A, 600 VAC/VDC Electrical Rating, 6 kOhm Resistance, 1 Hz to 10 kHz Frequency, 1.3 in Jaw, High Contrast White on Black LCD Display, +/-2% +/-5 Digits AC Current Accuracy, +/-1.5% RDG +/-4 RDG AC, +/-1.0% RDG +/-3 RDG DC Voltage Accuracy, Safety Rating: CAT III 600 VAC, AA Alkaline Battery Power Source, -40 to 752 deg F Operating, 9-1/2 in L Dimensions
Login For Price
- Item Features
- Technical Specifications
- Resources
- Measures up to 600 A AC/DC, large 1.3 in jaw opening
- Alkaline battery, peak hold type, dial switch type, capacitance
- AC current range - 0 to 600 A with accuracy of (+/- 2% riding +/- 5 digit) at 50/60 Hz, peak 1500 A with accuracy of (+/- 3.5% riding +/- 5 digit) at 40 to 400 Hz, CF equals to 2.5 at 600 A, add 2% at CF> 2 , CF equals 3 at 500 A, <=5 A, add 3 digit, 0 to 600 A with accuracy of (+/- 1.5% riding +/- 5 digit) at 50/60 Hz and (+/- 3.5% riding +/- 5 digit) at 40 to 400 Hz
- Resistance range - 600 Ohm/6 kOhm with accuracy (+/-1%rdg+/-5dgt)
- AC voltage range - 0 to 600 V with accuracy of (+/-1.5% riding +/-4 digit) at 50/60Hz and (+/-3.5% riding+/-5digit) at 40 to 400Hz
- DC voltage range - 60/600 V with accuracy of +/-(1% riding +/-3 digits)
- True-RMS for accurate measurement in all applications
- CAT III 600 VAC for increased safety
- Thin jaw profile for easier wire measurement in panels or in bundles
- Built-in voltage detector and LED work light
- Thermocouple (dual banana) input for contact temperature measurement
- 600 uA DC for flame rectification
- High contrast white on black display with backlight for easy reading
- Rugged 26 ga galvanized steel construction housing
- Measures up to 600 A AC/DC, large 1.3 in jaw opening
- Alkaline battery, peak hold type, dial switch type, capacitance
- AC current range - 0 to 600 A with accuracy of (+/- 2% riding +/- 5 digit) at 50/60 Hz, peak 1500 A with accuracy of (+/- 3.5% riding +/- 5 digit) at 40 to 400 Hz, CF equals to 2.5 at 600 A, add 2% at CF> 2 , CF equals 3 at 500 A, <=5 A, add 3 digit, 0 to 600 A with accuracy of (+/- 1.5% riding +/- 5 digit) at 50/60 Hz and (+/- 3.5% riding +/- 5 digit) at 40 to 400 Hz
- Resistance range - 600 Ohm/6 kOhm with accuracy (+/-1%rdg+/-5dgt)
- AC voltage range - 0 to 600 V with accuracy of (+/-1.5% riding +/-4 digit) at 50/60Hz and (+/-3.5% riding+/-5digit) at 40 to 400Hz
- DC voltage range - 60/600 V with accuracy of +/-(1% riding +/-3 digits)
- True-RMS for accurate measurement in all applications
- CAT III 600 VAC for increased safety
- Thin jaw profile for easier wire measurement in panels or in bundles
- Built-in voltage detector and LED work light
- Thermocouple (dual banana) input for contact temperature measurement
- 600 uA DC for flame rectification
- High contrast white on black display with backlight for easy reading
- Rugged 26 ga galvanized steel construction housing
- In Stock:YesAC Current Accuracy:+/-2% +/-5 DigitsDimensions:9-1/2 in LDisplay Type:High Contrast White on Black LCD, High Contrast White on DigitalElectrical Ratings:600 A 600 VAC/VDC, 600 A, 600 VAC/VDCFrequency Rating:1 Hz to 10 kHzJaw Capacity:1.3 inOperating Temperature:-40 to 752 deg FPower Source:AA Alkaline BatteryResistance:6 kOhmSafety Rating:Cat III 600 VACVoltage Accuracy:+/-1.5% RDG +/-4 RDG AC, +/-1.0% RDG +/-3 RDG DC, +/-1.5%rdg+/-4dgt AC, +/-1.0%rdg+/-3dgt DC
