Milwaukee® 2205-20 Heavy Duty Digital Fork Meter, 200 A, 1000 VAC/VDC, 40 mOhm, 50/60 Hz, 5/8 in Jaw, High Contrast White on Black LCD Display
meter fork 200 a 1000 vac/vdc 40mohm
Stellar Part #MILWA 2205-20
MFG Part #2205-20
MFG Name:Milwaukee Tool
Product Description:
Milwaukee® Fork Meter, Heavy Duty Digital, 200 A, 1000 VAC/VDC Electrical Rating, 40 mOhm Resistance, 50/60 Hz Frequency, 5/8 in Jaw, 4000 Count, High Contrast White on Black LCD Display, True RMS AC Response, +/-2% +/-5 Digits AC Current Accuracy, Safety Rating: CAT IV 600 V, CAT III 1000 V, AA Alkaline Battery Power Source, 14 to 122 deg F Operating, 8 in L Dimensions, Black/Red
Login For Price
- Item Features
- Technical Specifications
- Resources

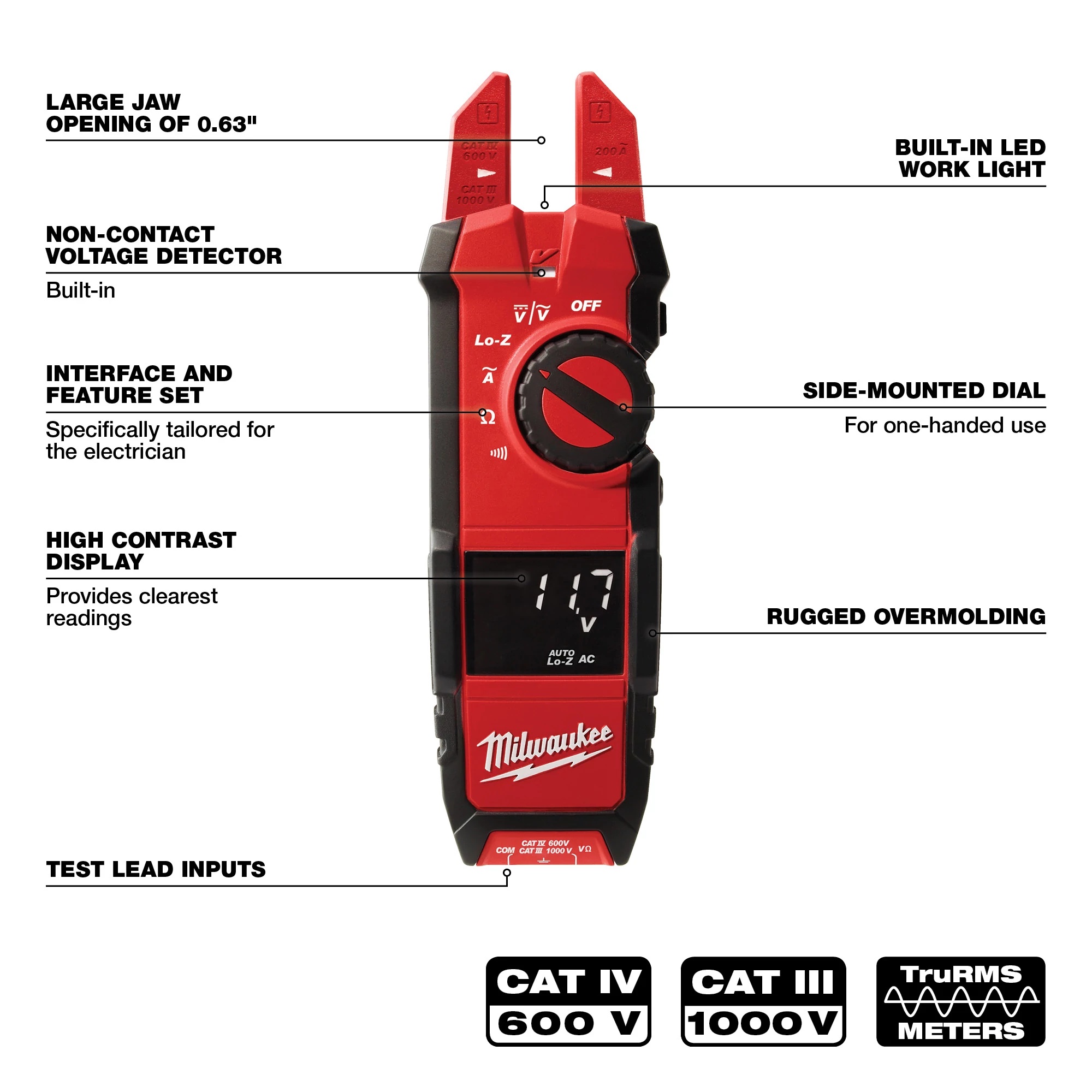

- Measures up to 200 A, wide 0.63 in jaw opening
- Wide voltage range to 1000 VAC/VDC
- True-RMS for accurate measurement in all applications
- Low-Z measurement to eliminate ghost voltage
- Built-in voltage detector and LED work light
- High contrast white on black display with backlight for easy reading
- Rugged overmolding increases durability and user grip
- CAT IV 600 V, cat iii 1000 V safety rating
- In addition, the new tool provides a wide 0.63 in fork opening, high 200 A current range and a high contrast white on black display
- Measures up to 200 A, wide 0.63 in jaw opening
- Wide voltage range to 1000 VAC/VDC
- True-RMS for accurate measurement in all applications
- Low-Z measurement to eliminate ghost voltage
- Built-in voltage detector and LED work light
- High contrast white on black display with backlight for easy reading
- Rugged overmolding increases durability and user grip
- CAT IV 600 V, cat iii 1000 V safety rating
- In addition, the new tool provides a wide 0.63 in fork opening, high 200 A current range and a high contrast white on black display
- AC Current Accuracy:+/-2% + 5 Digits, +/-2% +/-5 DigitsAC Response:True RMSColor:Black/RedCounts:4000Dimensions:8 in LDisplay Type:High Contrast White on Black LCDElectrical Ratings:1000 VAC/VDC, 200 A, 200 A, 1000 VAC/VDCFrequency Rating:50/60 HzJaw Capacity:5/8 inOperating Temperature:14 to 122 deg FPower Source:AA Alkaline BatteryResistance:40 mOhmSafety Rating:CAT IV 600 V, CAT III 1000 V, Cat IV 600 V/Cat III 1000 VType:Heavy Duty Digital
