Starrett
MICROMETER DEP 0-3IN 0.001IN FLT FLT
micrometer dep 0-3in 0.001in flt flt
Stellar Part #STARR 449AZ-3R
MFG Part #449AZ-3R
MFG Name:L.S. Starrett
Product Description:
Starrett® Depth Micrometer, Mechanical, Series: 449, 0 to 3 in, +/-0.0001 in Mic Head, +/-0.0002 in Rods Accuracy, Graduations: 0.001 in, Flat Anvil, Flat Spindle, Ratchet Thimble, Hardened Steel
Login For Price
- Item Features
- Technical Specifications
- Resources

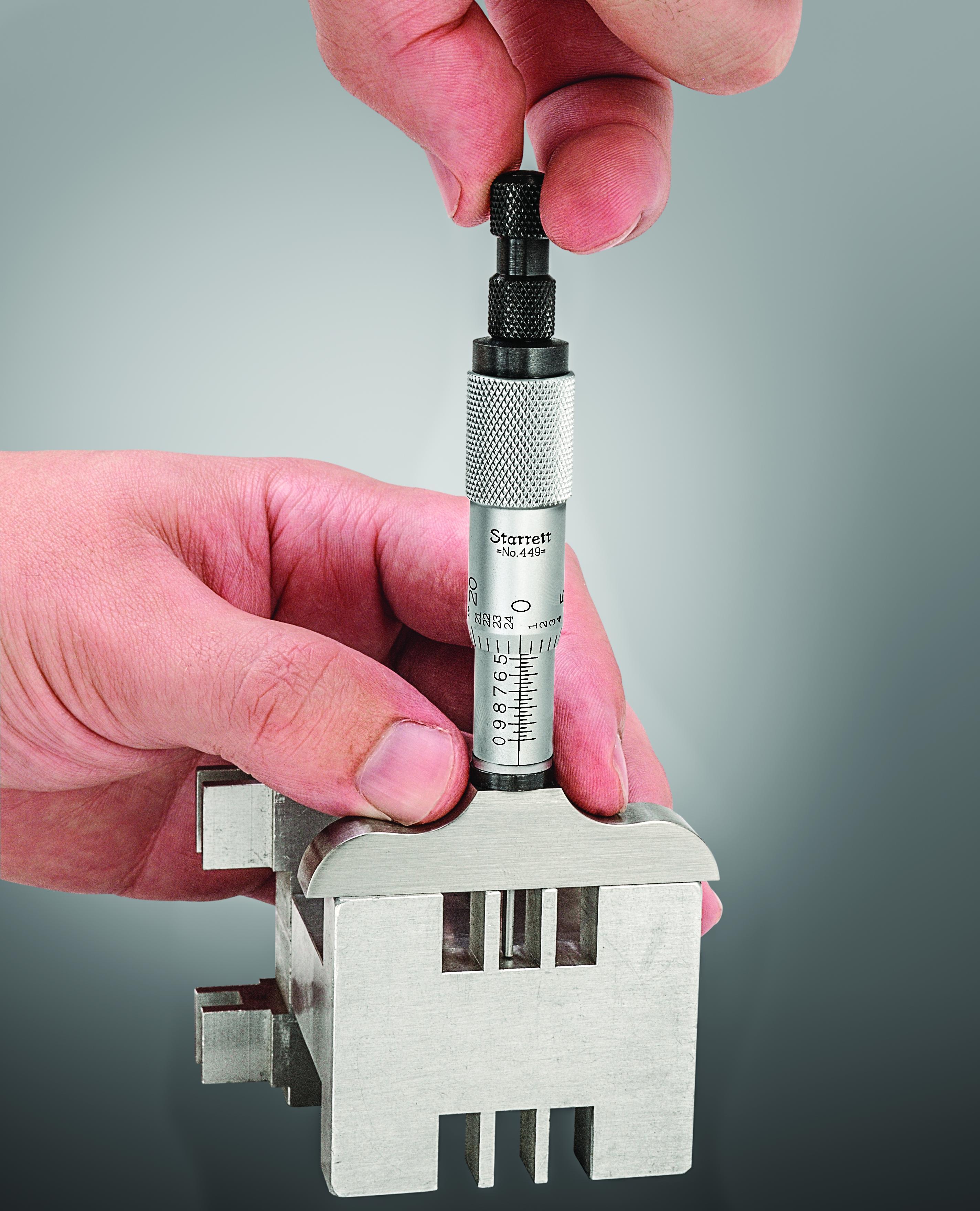

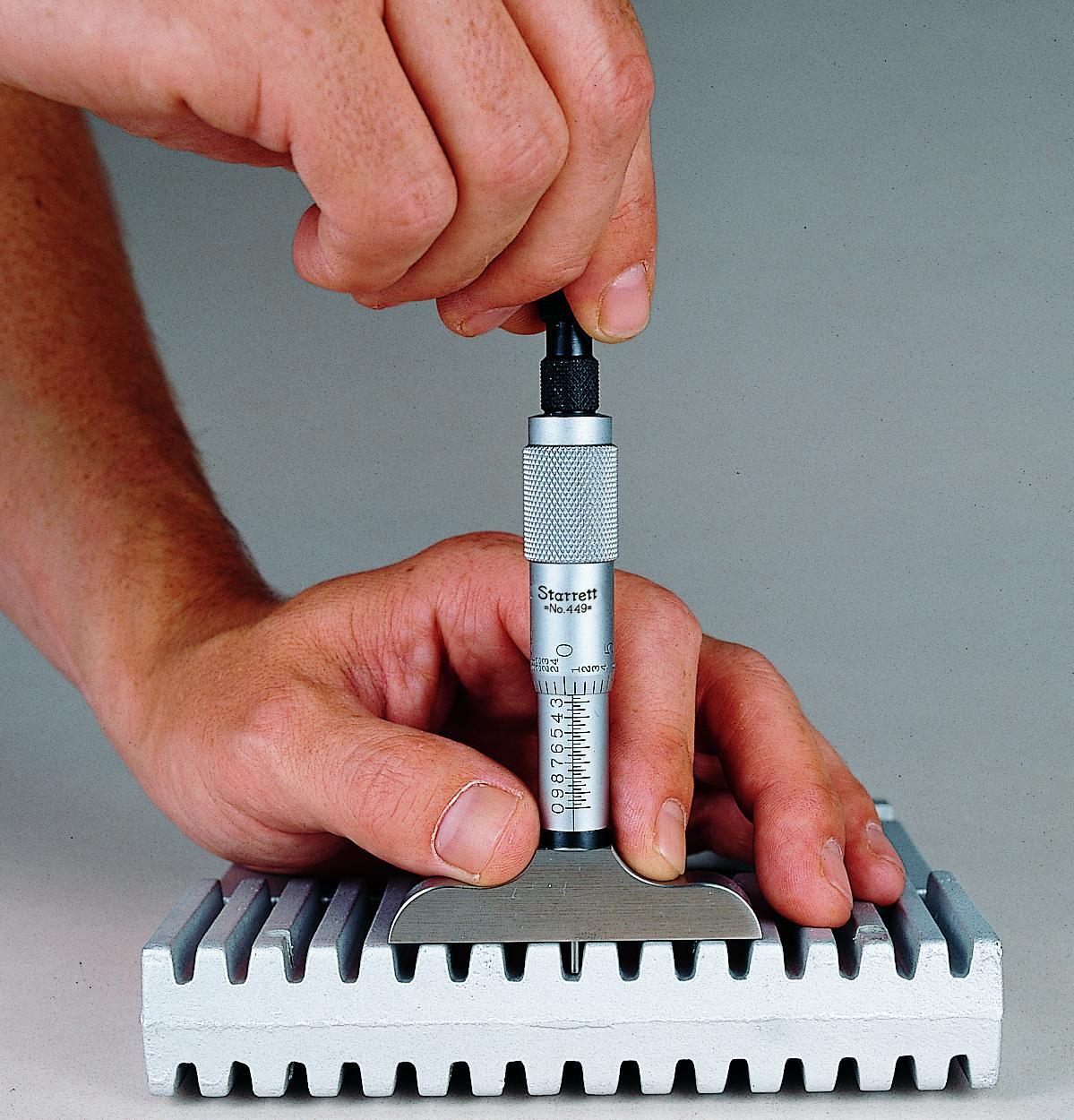

- The depths of holes, slots, shoulders and projections can be measured with these fine tools
- Non-rotating blade, blade does not turn, but moves perpendicularly only
- 2-1/2 in (63 mm) base
- 0.045 in thick x 1/8 in wide (1.2 x 3.2 mm) blade
- Combination ratchet and speeder for uniform pressure and quicker adjustment
- Ring-type knurled lock nut for quick and sure locking
- The depths of holes, slots, shoulders and projections can be measured with these fine tools
- Non-rotating blade, blade does not turn, but moves perpendicularly only
- 2-1/2 in (63 mm) base
- 0.045 in thick x 1/8 in wide (1.2 x 3.2 mm) blade
- Combination ratchet and speeder for uniform pressure and quicker adjustment
- Ring-type knurled lock nut for quick and sure locking
- Accuracy:+/-0.0001 in Mic Head, +/-0.0002 in RodsAnvil Type:FlatGraduations:0.001 inMaterial:Hardened SteelMeasuring Range:0 to 3 inSeries:449Spindle Type:FlatThimble Type:RatchetType:Mechanical
