CUTTER MILLING DISC ARBOR 125MM RH 32MM

CUTTER MILLING DISC ARBOR 125MM RH 32MM

cutter milling disc arbor 125mm rh 32mm

Stellar Part #SANCO 7295418

MFG Part #7295418

MFG Name:Sandvik Coromant

Product Description:

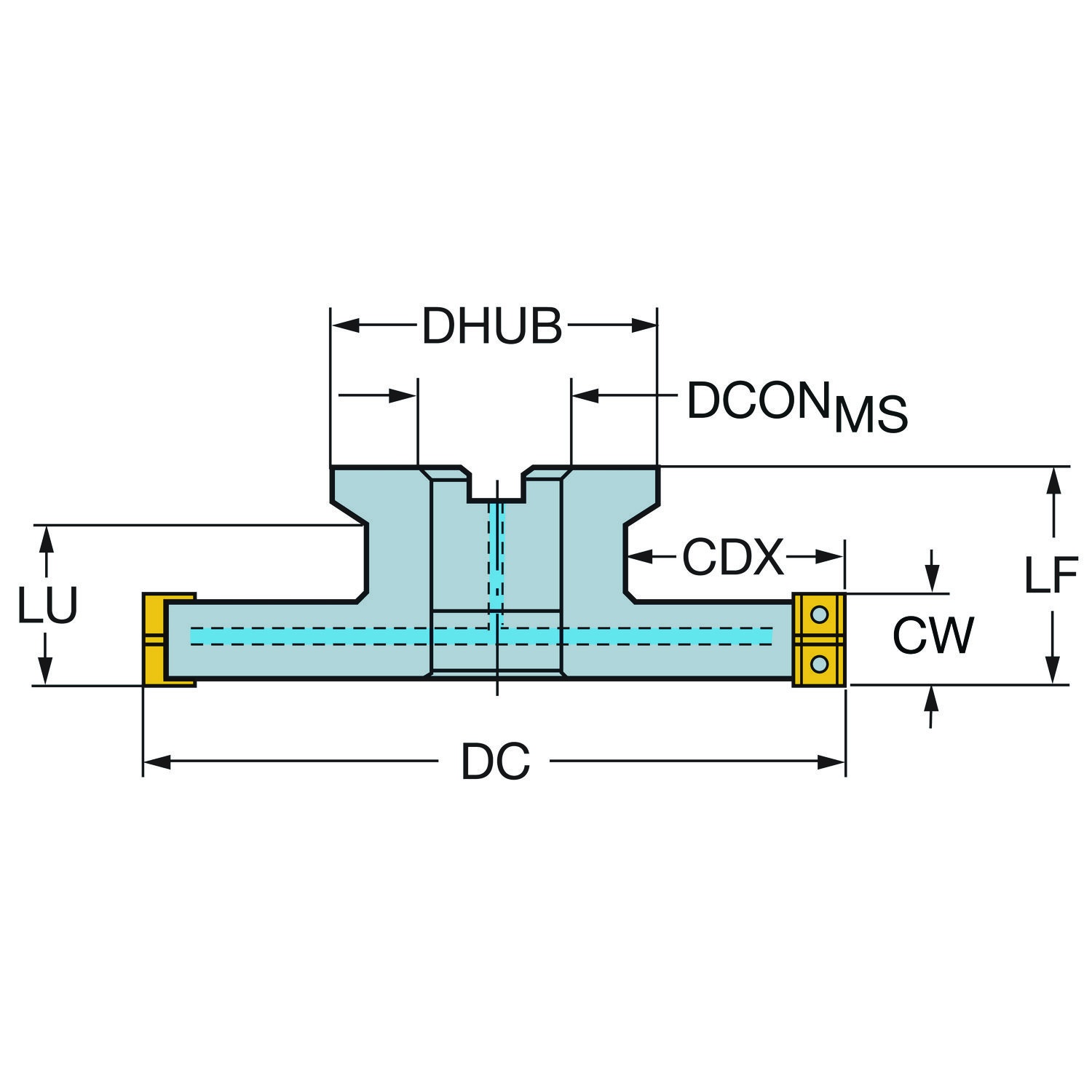

Sandvik Coromant 7295418 CoroMill 331 Adjustable Full Side and Face Metric Disc Milling Cutter With Internal Coolant, ANSI Code: R331.32C-125Q32LM, Arbor Connection, R331.32C Toolholder, 125 mm Dia x 17.5 to 20.5 mm W Cutting, Right Hand Cutting
Login For Price
ANSI Code
R331.32C-125Q32LM
Arbor Hole Diameter
32 mm
Connection Type
Arbor
Cutting Diameter
125 mm
Cutting Direction
Right Hand
Cutting Width
17.5 to 20.5 mm
Hole Diameter
32 mm
Insert Compatibility
N/R331.1A-11RE0.20-1.54
Insert Gage Screw
5513 020-29
ISO Code
R331.32C-125Q32LM
Maximum Depth of Cut
29.5 mm
Modular Connection Size
32 mm
Number of Inserts
8
Overall Length
50 mm
Rake
Positive
Series
CoroMill® 331
Toolholder Type
R331.32C
Type
Adjustable Full Side and Face Metric
