Williams® 5ES10H2GR Electric Hydraulic Pump With 2 gal 4-Way 3-Position Solenoid Valve, 1 hp, 2 Stages, 311 cu-in/min 1st Stage, 37 cu-in/min 2nd Stage Flow Rate, 700 psi (1st Stage)/10000 psi (2nd Stage) Pressure
pump hc elec 2 1hp 115vac 12a 16.1in
Stellar Part #JHWIL 5ES10H2GR
MFG Part #5ES10H2GR
MFG Name:Snap-on Industrial
Product Description:

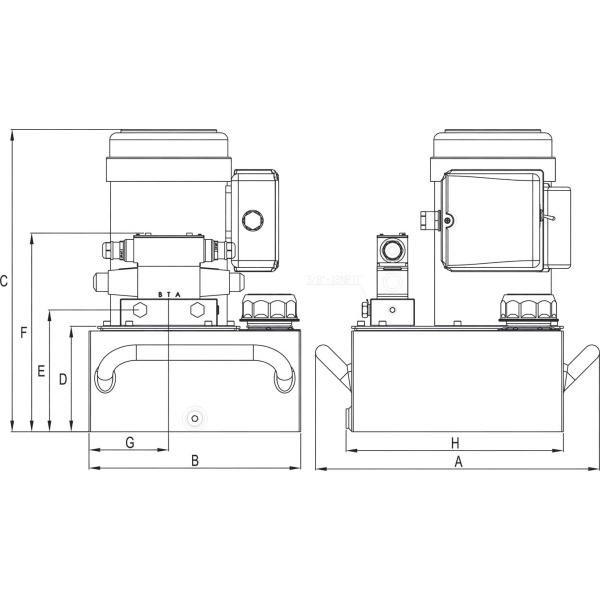

Williams® Electric Hydraulic Pump, 2 Stage, 1 hp, 311 cu-in/min 1st Stage, 37 cu-in/min 2nd Stage, 700 psi (1st Stage)/10000 psi (2nd Stage), 115 VAC, 12 A, 3/8-18 NPTF Pressure Port, 16.1 in Overall Length, 12.01 in Overall Width, 19.78 in Overall Height
Login For Price
- Item Features
- Technical Specifications
- Resources
- Ideal for applications where a remote control is required
- 2-speed operations allows for faster cylinder advance
- Full load starting capabilities
- Internal filter keeps contamination from damaging pump
- 10 ft handheld remote controls the solenoid valve
- Advance/hold/return valve function
- Used with double acting cylinder
- Ideal for applications where a remote control is required
- 2-speed operations allows for faster cylinder advance
- Full load starting capabilities
- Internal filter keeps contamination from damaging pump
- 10 ft handheld remote controls the solenoid valve
- Advance/hold/return valve function
- Used with double acting cylinder
