Stellar Part #STARR 567
MFG Part #567
MFG Name:L.S. Starrett
Product Description:
Starrett® V-Block and Clamp Set, 7 Piece, 1-5/16 in Capacity
Login For Price
- Item Features
- Technical Specifications
- The clamp is smaller than the outside width of the block, but has an adjustable side screw to support the block and prevent tilting
- The V at the stepped end is at right angles to the base and is handy for holding shouldered studs, pins, etc
- A clearance hole for drilling or removing dowel pins is provided in the block
- The block has four 3/8-16 tapped holes
- The block is hardened and precision ground
- The clamp is a strong forging
- Can be used on its base, on the end, or on either side

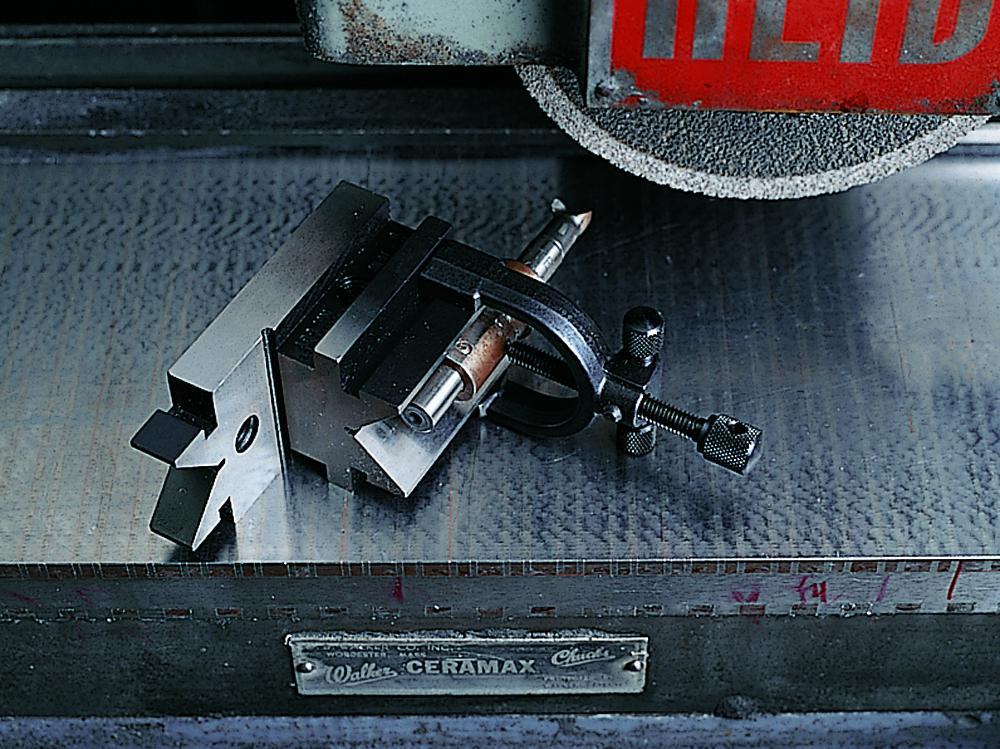

- Used for general shop use and layout work, as well as for holding stock in place during light duty milling, drilling and grinding operations
- All clamp screws have a hole to help secure the workpiece
- The clamp is smaller than the outside width of the block, but has an adjustable side screw to support the block and prevent tilting
- The V at the stepped end is at right angles to the base and is handy for holding shouldered studs, pins, etc
- A clearance hole for drilling or removing dowel pins is provided in the block
- The block has four 3/8-16 tapped holes
- The block is hardened and precision ground
- The clamp is a strong forging
- Can be used on its base, on the end, or on either side
- Used for general shop use and layout work, as well as for holding stock in place during light duty milling, drilling and grinding operations
- All clamp screws have a hole to help secure the workpiece
- Number of Pieces:7Specifications:1-5/16 in Capacity
