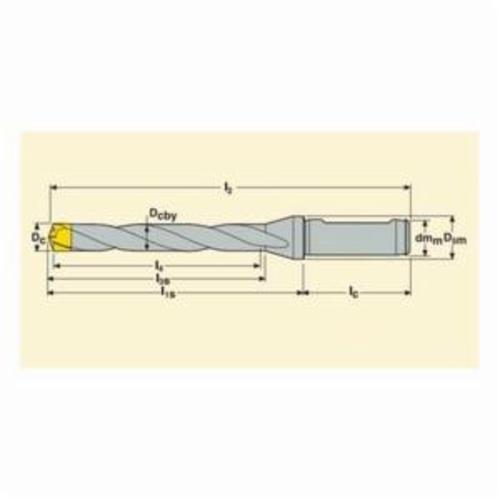

Seco 00040003 Crownloc® Right Hand Exchangeable Tip Drill, 12 to 12.49 mm Drill, SD100 Insert, 6.555 in OAL, 7XD Drill Depth by Dia Ratio, 5/8 in Dia Shank, SD107 Toolholder
drill tip exchangeable 12 to 12.49mm 7xd
Stellar Part #SECCA 40003
MFG Part #40003
MFG Name:Seco Tools
Product Description:
Seco Exchangeable Tip Drill, Right Hand, Series: Crownloc®, 12 to 12.49 mm Drill, ISO 9766/Weldon Shank, 5/8 in Shank Diameter, 1.89 in Shank Length, 3.957 in Flute Length, 6.555 in Overall Length, SD107 Toolholder, 140 deg Point, 90 mm Maximum Drill Depth, 7XD Drill Depth by Diameter Ratio, SD100 Insert, Yes Through Coolant
Login For Price
- Item Features
- Technical Specifications
- Resources
- Exchangeable carbide tips
- Geometries for different workpiece materials
- No regrinding
- Exchangeable carbide tips
- Geometries for different workpiece materials
- No regrinding
- Drill Depth by Diameter Ratio:7XDDrill Size:12 to 12.49 mmFlute Length:3.957 inInsert Style:SD100Maximum Drill Depth:90 mmOverall Length:6.555 inPoint Angle:140 degSeries:CrownlocShank Diameter:5/8 inShank Length:1.89 inShank Type:ISO 9766/Weld-OnThrough Coolant (Yes/No):YesToolholder Type:SD107Type:Right Hand
