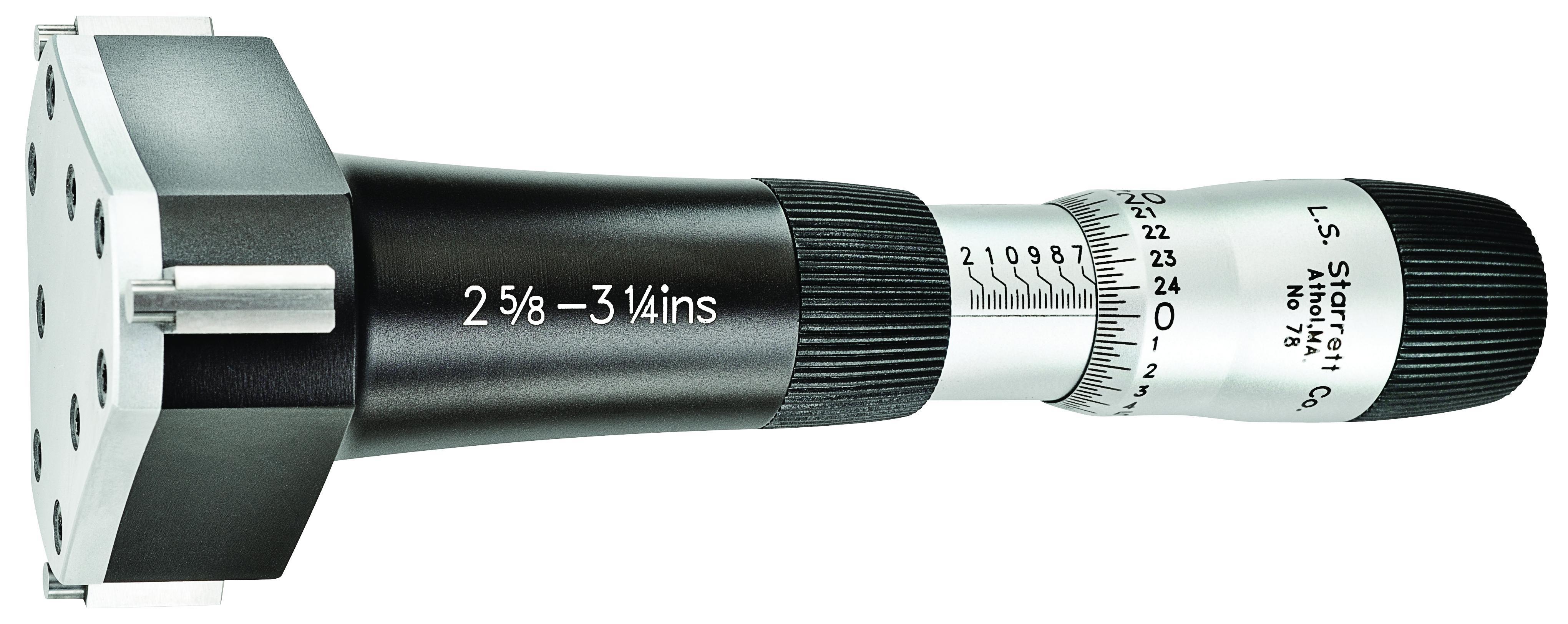

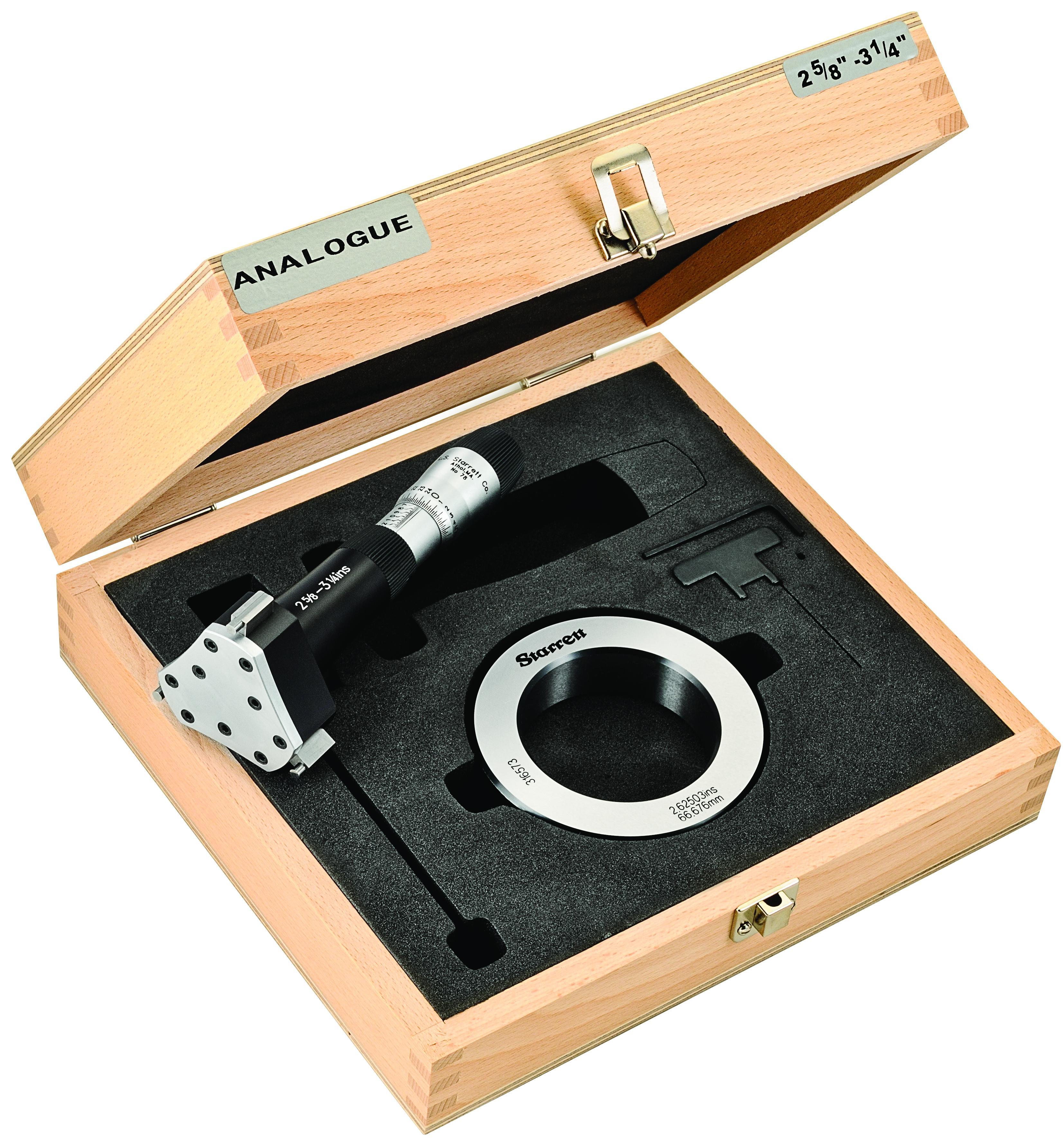

Starrett® 78XTZ-314 78XT Global Series® Mechanical Bore Gage, 2-5/8 to 3-1/4 in, Graduations: 0.00025 in, 3-1/16 in D Probe, Tungsten Carbide
gage bore 2-5/8-3-1/4in 0.00025in tc
Stellar Part #STARR 78XTZ-314
MFG Part #78XTZ-314
MFG Name:L.S. Starrett
Product Description:
Starrett® Bore Gage, Mechanical, Series: 78XT Global Series®, 2-5/8 to 3-1/4 in, 0.0002 in Accuracy, Graduations: 0.00025 in, 0.0002 in Resolution, 3-1/16 in Probe Depth, Tungsten Carbide
Login For Price
- Item Features
- Technical Specifications
- Wide measurement range without changing anvils
- Tungsten carbide measuring faces on all 3-point heads above 1/2 in (12.5 mm)
- Ratchet stop ensures consistent measurements
- Self-centering contacts for true readings
- Blind bore measuring capability above 1/2 in (12.5 mm) diameter
- Extensions available up to 6 in (150mm) for deep hole measuring
- 2.625 in setting ring diameter
- 3-point contact
- Wide measurement range without changing anvils
- Tungsten carbide measuring faces on all 3-point heads above 1/2 in (12.5 mm)
- Ratchet stop ensures consistent measurements
- Self-centering contacts for true readings
- Blind bore measuring capability above 1/2 in (12.5 mm) diameter
- Extensions available up to 6 in (150mm) for deep hole measuring
- 2.625 in setting ring diameter
- 3-point contact
- Accuracy:0.0002 inGraduations:0.00025 inMaterial:Tungsten CarbideMeasuring Range:2-5/8 to 3-1/4 inProbe Depth:3-1/16 inResolution:0.0002 inSeries:78XT Global Series, 78XT Global Series®Type:Mechanical
